Airway Branch-Angle Reports

Automated measurement of right/left main-bronchus take-off angles from CT airway segmentations (TotalSegmentator trachea label → skeleton → bifurcation-aware direction fit). Each report renders the raw segmentation mesh with no smoothing or decimation, so a bad scan or a bad mask is visible at a glance. Built as an aid for single-lung-intubation planning.

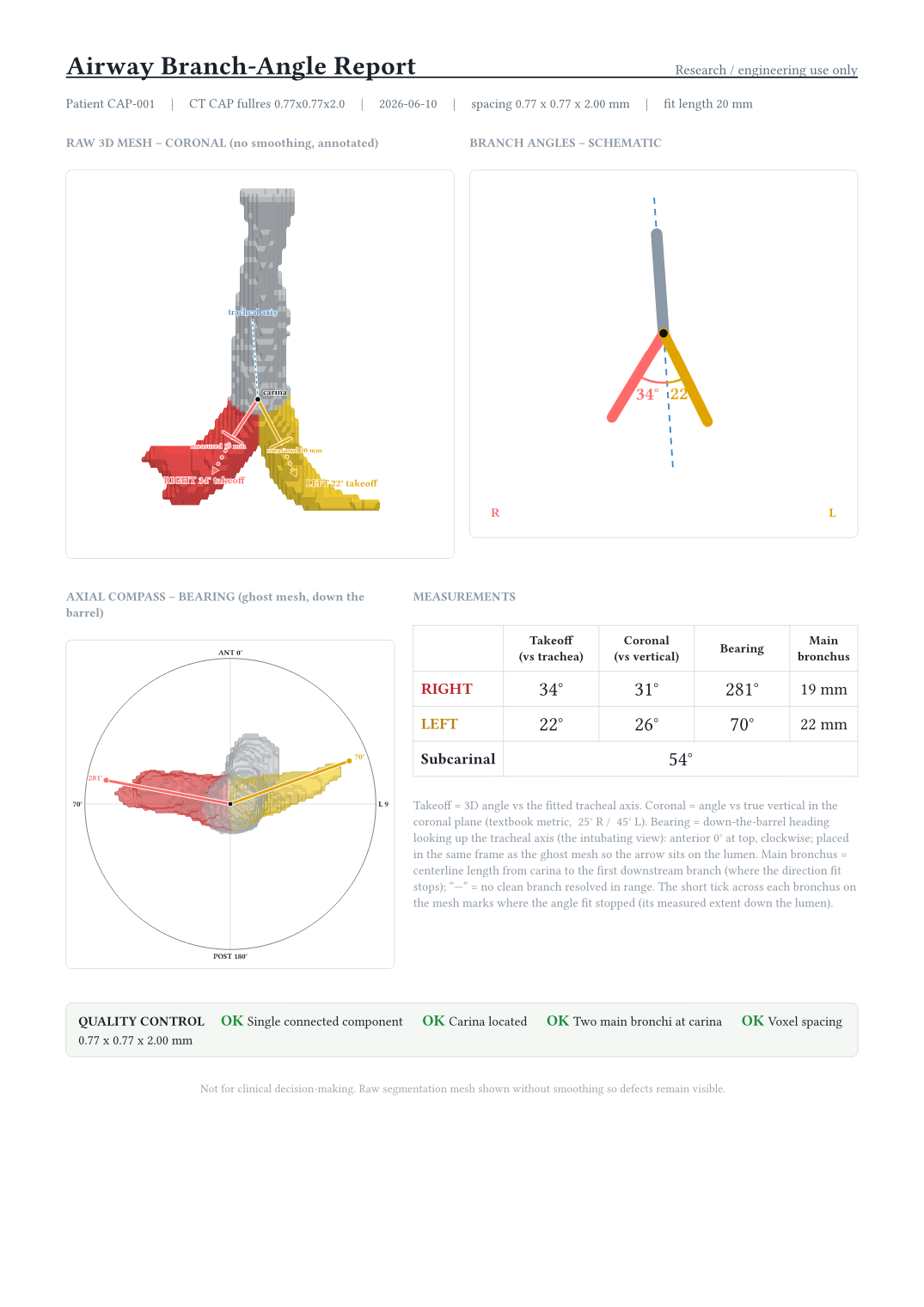

RAW mesh QC 3D take-off + axial bearing programmatic mesh callouts subcarinal angle

Featured — full-resolution CAP scan

CAP airway report preview

CAP — 0.77×0.77×2.0 mm

RIGHT 34° @ 281° LEFT 22° @ 70° subcarinal 54° main bronchus R 19 mm / L 22 mm

Bearings are down-the-barrel headings — measured looking up the tracheal axis, the view the intubating doctor works to — so the compass arrow sits on the lumen in the ghost render. Bifurcation detected by perpendicular-plane lumen counting; the fit stops at the first downstream branch. Every arrow and call-out is placed by deterministic world→pixel projection, not vision.

Open CAP report (PDF)

Cohort — TotalSegmentator example subjects & phantom

Not for clinical decision-making. Research / engineering use only. Subjects shown are TotalSegmentator public example data and a synthetic phantom — no patient data. The raw mesh is shown without smoothing so segmentation defects remain visible; angle epidemiology from this small set should not be generalized.
